The M2 Sport




The Sport series of bars were designed for safety and low impact on vehicle utility. Chosen by Mazda NA for their Laguna Seca NB pace car and Mazdaspeed track car prototype. The Sport uses the same main hoop and rear brace structure as our Cage models and meets SCCA Time Trial safety requirements when equipped with diagonal bracing.

The M2 Sport fit all Miata chassis from 1990- 2005. Specifically designed for the 2nd generation Mazda glass rear window convertible tops or equivalent size glass window installed on a 1st generation Miata. The M2 Sport is also compatible with all flexible plastic rear window tops.
 Special diagonal verisons are available for aftermarket glass rear windows that are larger than the '99 - '05 original equipment. See our application guide for factory glass window specs.

One or two main hoop diagonal braces and/or harness attachment tabs may be added.

Mazda hard top compatible with stock latches.

Compatible with stock seat belts.





  • Not sure which Roll Bar is right for you? Contact Us!


  • Protect your bean. Custom formed high density padding is now available for Hard Dog Roll Bars!

Features:

  • Legal for SCCA Time Trials Events when equipped with at least one diagonal brace.

  • Allows full seat travel and tilt**

  • Full interior height and width; farther to the rear than the Standard Hard Core allowing better head clearance

  • Fits 1990 - 2005 Miata chassis

  • Complete use of Mazda hard top and glass rear window soft top

  • Available with a durable black powdercoat finish or polished stainless steel

  • Constructed of highest quality tubing 1.5" diam x .120" wall

  • Laser cut 3/16" mounting and backup plates

  • Complete hardware kit w/ grade 8 bolts, washers and self locking nuts

Roll Bar Accessories:



M2 Sport - SCCA Time Trials - Mazda Hard Top and Glass Window Soft Tops
-  Continental U.S.  Shipping $95.00
Item/Number Description
Price
9S Black Powdercoat
$345.00
9S1D Black Powdercoat w/ Single Diagonal
$385.00
9S2D Black Powdercoat w/ Double Diagonal
$425.00
H Harness Tabs
$40.00
R Special Diagonal Configuration for larger than stock NB glass window
$20.00
S9S Polished Stainless Steel
$1015.00
S9S1D Stainless w/ Single Diagonal
$1140.00
S9S2D Stainless w/ Double Diagonal
$1265.00

Stitched Covers w/ our Custom Formed High Density Padding - Cover Shipping $15.00 Continental U.S
Item/Number Description
Price
V Black Vinyl
$85.00
L Black Leather
$125.00

Hard Dog Custom Formed High Density Padding - Pad Shipping $15.00 Continental U.S
Item/Number Description
Price
SPAD Formed Pad Only
$45.00

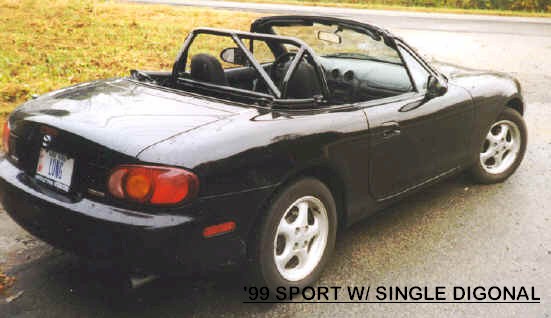

Black Powdercoat M2 Sport with Single Diagonal
Click to Enlarge Image

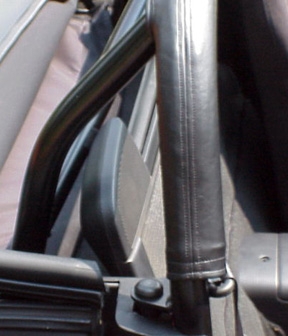

M2 Sport w/ Vinyl Cover in '04 Mazdaspeed
Click to Enlarge Image

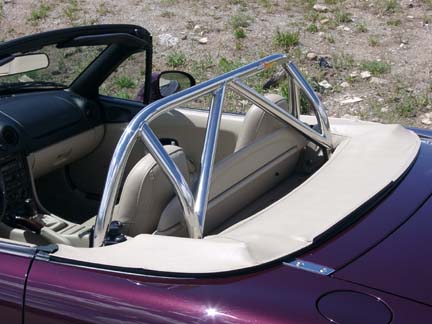

Polished Stainless M2 Sport with Double Diagonals
Click to Enlarge Image

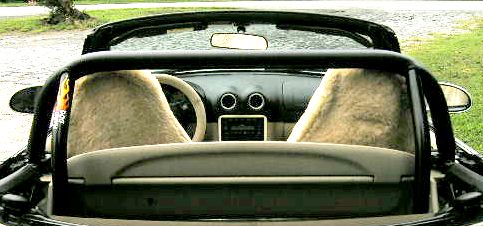

M2 Sport without Diagonals
Click to Enlarge Image

**Certain seat configurations in Miata models '01+ may cause the seat to come into contact with the bar. While the headrest may touch the bar, this does not limit seat travel.

WARNING: This article is sold without warranty, expressed or implied. No warranty is made to this product's ability to protect the user from any injury or death. The user assumes that risk.

Updated April 14, 2017 12:46 PM
