The Standard M1 Hard Core




The Hard Core Series of bars are designed to meet SCCA Solo 1, SCCA Time Trials and NASA HPDE safety requirements for the competitor that wants to maintain a dual purpose car for street and track events.

The M1 Hard Core models fit all Miata chassis from 1990 - 2005 and are specifically designed for plastic rear window convertible tops. Not compatible with glass rear window soft tops.

The Single and Double Diagonal versions of the M1 Hard Core Bars are built with an integral harness bar as standard equipment
There's no room for a PROPER straight integral harness bar with the X Brace optimized diagonal angles. A Bolt-In Harness Bar is required for shoulder strap mounting with the X Brace.

The Standard M1 Hard Core is the tallest design possible with a functional top but not necessarily the best choice for tall drivers using stock seats because of the more forward placement of the main hoop. We recommend the Hard Core Hardtop version or Sport models for most drivers over 5' 9" with unmodified stock seats. You can see the differences in main hoop placements in the Schematic Views on our Application guide.

Compatible with stock seat belts

The Standard M1 Hard Core is not designed for use with a hard top. The M1 Hard Core Hardtop is built for use with Mazda hard tops.





  • Not sure which Roll Bar is right for you? Contact Us!

  • Protect your bean. Custom formed high density padding is now available for Hard Dog Roll Bars!



Features:

  • Full interior width

  • Complete use of plastic rear window soft tops

  • Single main hoop diagonal brace and harness bar standard

  • Second main hoop diagonal brace may be added for extra strength and better rear vision

  • X Brace version for the strongest bar available *

  • Durable black powdercoat finish

  • Constructed of highest quality 1.75" diam x .120" wall 1026 alloy drawn over mandrel tubing

  • Laser cut 3/16" mounting and back-up plates

  • Complete hardware kit w/ grade 8 bolts

Roll Bar Accessories:



Standard M1 Hard Core - SCCA Solo I / Time Trials - Plastic Rear Window Soft Tops ONLY
    Continental U.S. Shipping $95.00
Item/Number Description
Price
AB1 Single Diagonal
$455.00
AB2 Double Diagonal
$495.00
ABX X Brace Diagonal *
$525.00

Stitched Covers w/ our Custom Formed High Density Padding (Cover Shipping $15.00 Continental U.S)
Item/Number Description
Price
V Black Vinyl w/ custom formed padding
$85.00
L Black Leather w/ custom formed padding
$125.00

Hard Dog Custom Formed High Density Padding (Pad Shipping $15.00 Continental U.S)
Item/Number Description
Price
CPAD Formed Pad Only
$45.00

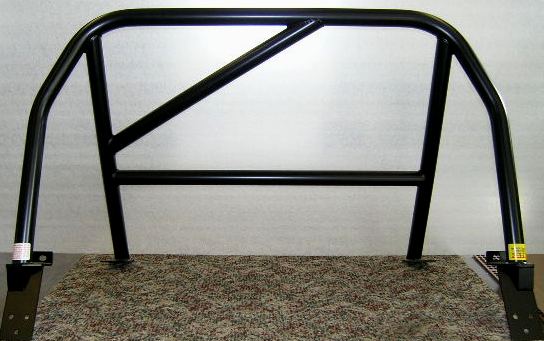

Hard Core Bar with Single Diagonal
Click to Enlarge Image

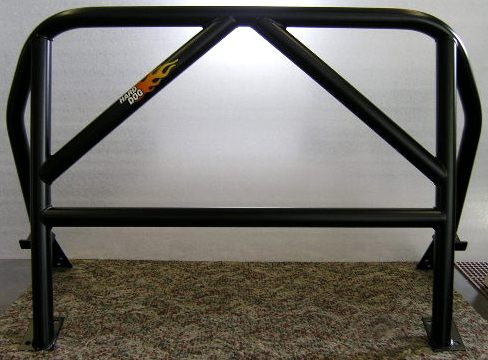

Hard Core Bar with Double Diagonals
Click to Enlarge Image

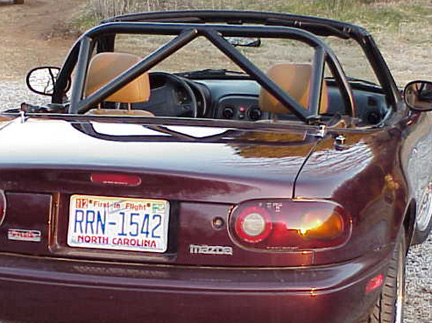

Hard Core Bar with X Brace Diagonals
Click to Enlarge Image

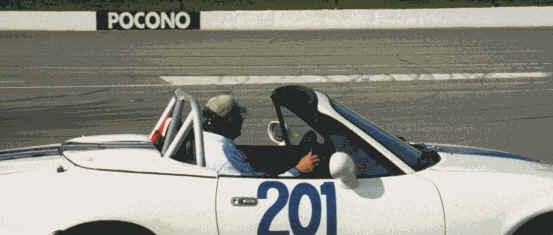

Hard Core Bar with Double Diagonals
Click to Enlarge Image


* Our Bolt-In Harness Bar must be used for harness attachment with the X Brace Diagonals

WARNING: This article is sold without warranty, expressed or implied. No warranty is made to this product's ability to protect the user from any injury or death. The user assumes that risk.
