The S2000 Bar




The Hard Dog S2000 bar is designed for the SCCA competitor that wants to maintain a dual purpose car for street and racing use. Or for added protection in daily street usage. SCCA Solo, Time Trials and NASA HPDE compliant when equipped with diagonal bracing.

The S2000 bar is compatible with plastic or glass rear window convertible tops and Honda hard tops. Reindexing of the oem hard top side latch levers is required.

Removal of the stock hoops is not necessary but strongly recommended if high performance or competition driving is the goal. If factory roll hoops are removed, welded brackets are an option for retention of the stock seat belt shoulder harness guides. Our Bulkhead Replacement Bar provides attachment points for the factory seat belt reels and allows clearance for racing harness shoulder straps.

There is no loss of stock seat track travel with any configuration. Two clicks of recline are lost due to interference by the roll bar main hoop.





  • Not sure which Roll Bar is right for you? Contact Us!

  • Leather and Vinyl Covers w/ Custom formed high density padding are now available for Hard Dog S2000 Roll Bars!

Features:

  • Full interior width

  • Complete use of plastic or glass rear window soft tops

  • Factory hoop compatible versions available but not recommended for racing harness use

  • Single or Double Diagonal configurations available

  • Durable black powdercoat finish

  • Constructed of highest quality 1.75" diam x .120" wall drawn over mandrel tubing

  • Laser cut 3/16" mounting and back-up plates

  • Complete hardware kit w/ grade 8 bolts

Roll Bar Accessories:



S2000 -
Contiguous 48 U.S. States Shipping $225.00
Item/Number Description
Price
S2 S2000 Roll Bar - No Diagonal / No Harness Bar - Options Listed Below
$770.00
Options Available for S2 Roll Bar - Add these to your S2000 Bar from "Buy Now" Page
D Welded Single Diagonal in the plane of the main hoop - limits passenger seat recline
Add $80.00
2D Double Diagonals - welded to rearward braces - not compatible with stock hoops
Add $160.00
HL Welded Harness Bar between rear braces - allows a proper harness shoulder strap angle for most drivers. (Removal of stock bulkhead required for harness shoulder strap installation.)
Add $95.00
RD Removable Single Diagonal in the plane of the main hoop
Add $220.00
B Shoulder Belt Guide Brackets - required for mounting stock belt guides when factory roll hoops are removed and oem seat belts retained
Add $95.00

Bulkhead Brace Rplacement Bar - Contiguous 48 U.S. States Shipping $75
CBAR Stock Seat Belt Reel Mounting Bar - replaces stock bulkhead brace for shoulder harness clearance - Retrofit, Does Not require removal of roll bar to install
$250.00



Stitched Covers w/ our Custom Formed High Density Padding (Cover Shipping $30.00 Contiguous U.S)
Item/Number Description
Price
V Black Vinyl w/ custom formed padding
$120.00
L Black Leather w/ custom formed padding
$175.00

Hard Dog Custom Formed High Density Padding (Pad Shipping $30.00 Contiguous U.S)
Item/Number Description
Price
CPAD Formed Pad Only
$65.00


Click to Enlarge Image

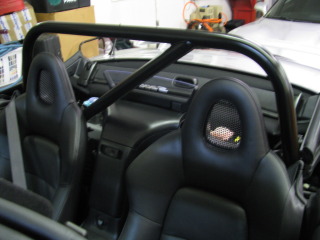

Black Powdercoat S2000 Bar with Welded Diagonal
Click to Enlarge Image

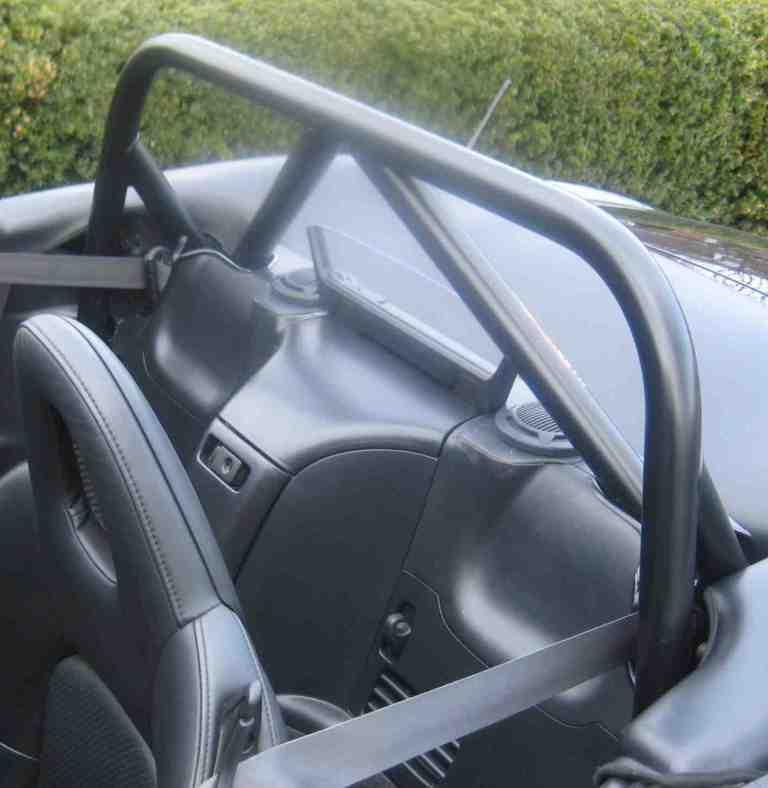

Black Powdercoat S2000 Bar with Double Diagonal & Harness Bar w/ CBAR installed
Click to Enlarge Image

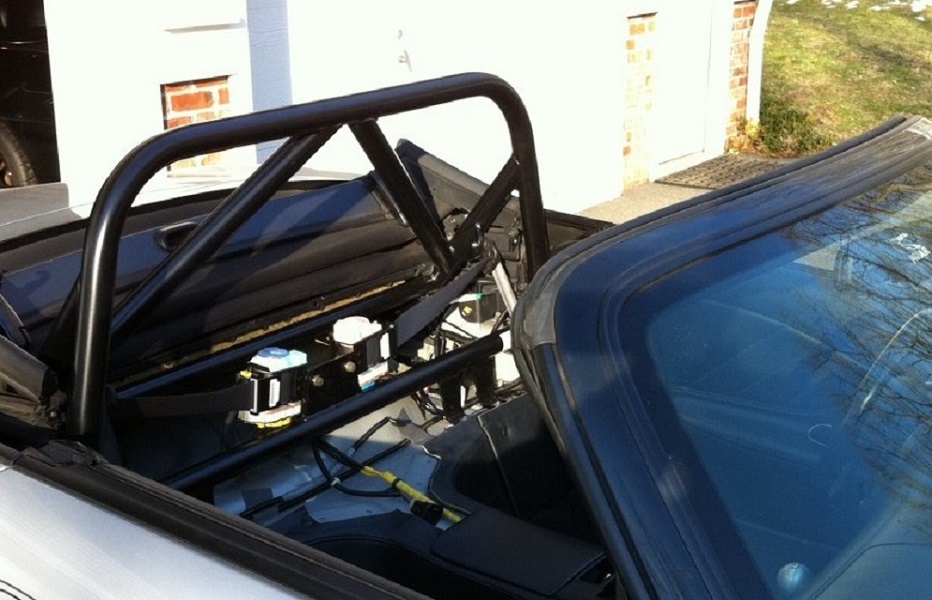

S2000 Bar with Welded Diagonal & Lowered Harness Bar w/ center console
Click to Enlarge Image

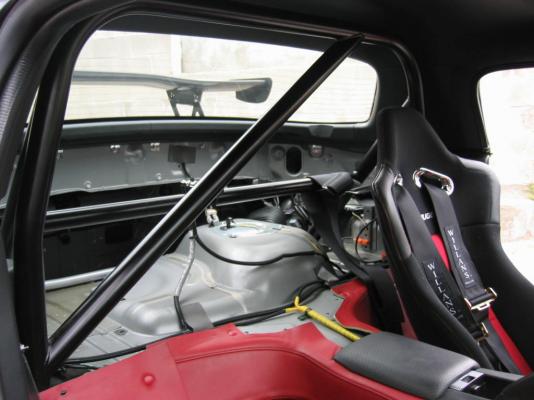

S2000 Bar w/ Double Diagonals, belt guide brackets & Lowered Harness Bar w/ center console
Click to Enlarge Image



WARNING: This article is sold without warranty, expressed or implied. No warranty is made to this product's ability to protect the user from any injury or death. The user assumes that risk.

Updated Jan 1, 2024
